主頁/產品中心/硬盤

超微X11DPH-I 雙路服務器主板E-ATX/C621/205W 返回

產品詳情

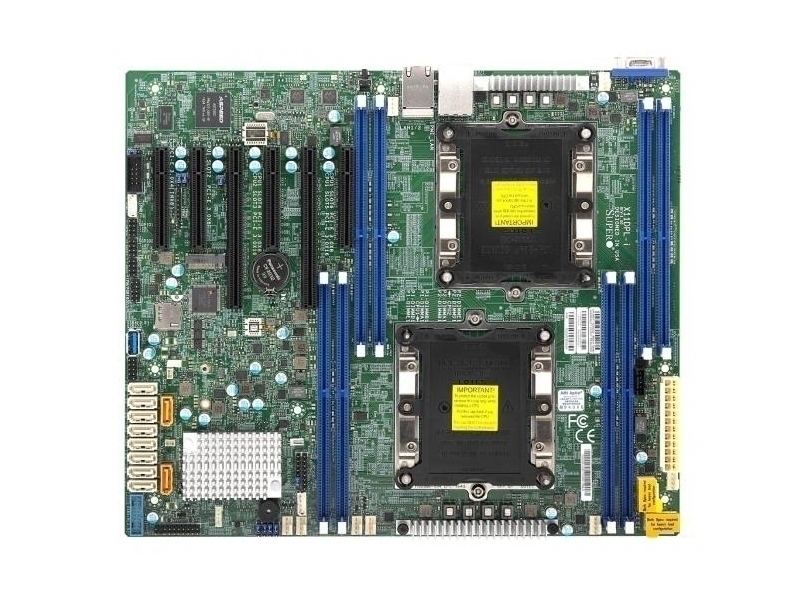

超微X11DPH-I 雙路服務器主板E-ATX/C621/205W



Product SKUs

MBD-X11DPH-i

  • X11DPH-i


Physical Stats

Form Factor

  • E-ATX

Dimensions

  • 12" x 13" (30.48cm x 33.02cm)


Processor/Cache

CPU

  • 2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors,

  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

Note

  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

  • BIOS version 3.2 or above is required to support 2nd Gen Intel? Xeon? Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity

  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;

  • Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only);


Memory Type

  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

  • RDIMM: 64GB

  • LRDIMM: 64GB

  • 3DS LRDIMM: 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset

  • Intel? C621

SATA

  • Intel? C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Network Controllers

  • Dual LAN with 1GbE with Intel? X722 + Marvell 88E1512


Input / Output

SATA

  • 10 SATA3 (6Gbps) ports

LAN

  • 2 1GbE LAN ports

USB

  • 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)

Video Output

  • 1 VGA port

Serial Port / Header

  • 1 COM Port (1 rear)

TPM

  • 1 TPM Header
